Sign Mounting Heights and Locations

Typical Sign Mounting Locations

Whenever possible, mount the sign on the side of the door
Whenever possible: latch the plaque on the side of the door.

Mounting Location for Doors with Side Glass Panel

When sidelights are present, mount the sign directly to or beside the glass
When sidelights are present, mount the plaque directly to the glass with a backer, or on the wall adjacent to the glass.


Mounting Location With Not Enough Room to the Side of the Door

When sidelights are present, mount the sign directly to or beside the glass

When space is not available to the latch side of the door, mount the plaque on the nearest adjacent wall.
In doing so, remember to maintain an 18″ clearance area if the door swings out.

Double Door Mounting Location

Mount the sign to wall on the right

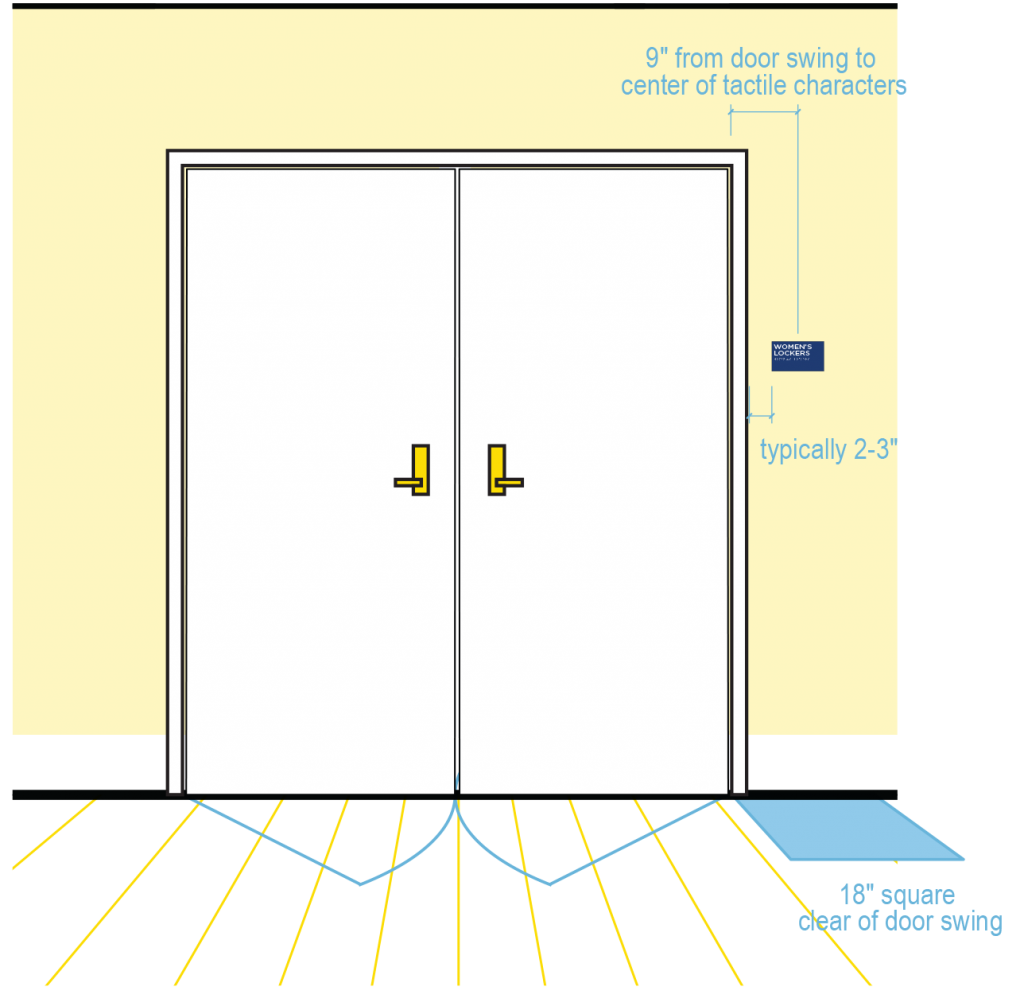

For double doors with both active leaves, mount the plaque on the wall to the right.

Double Door Mounting Location

Mount the sign on the inactive leaf.

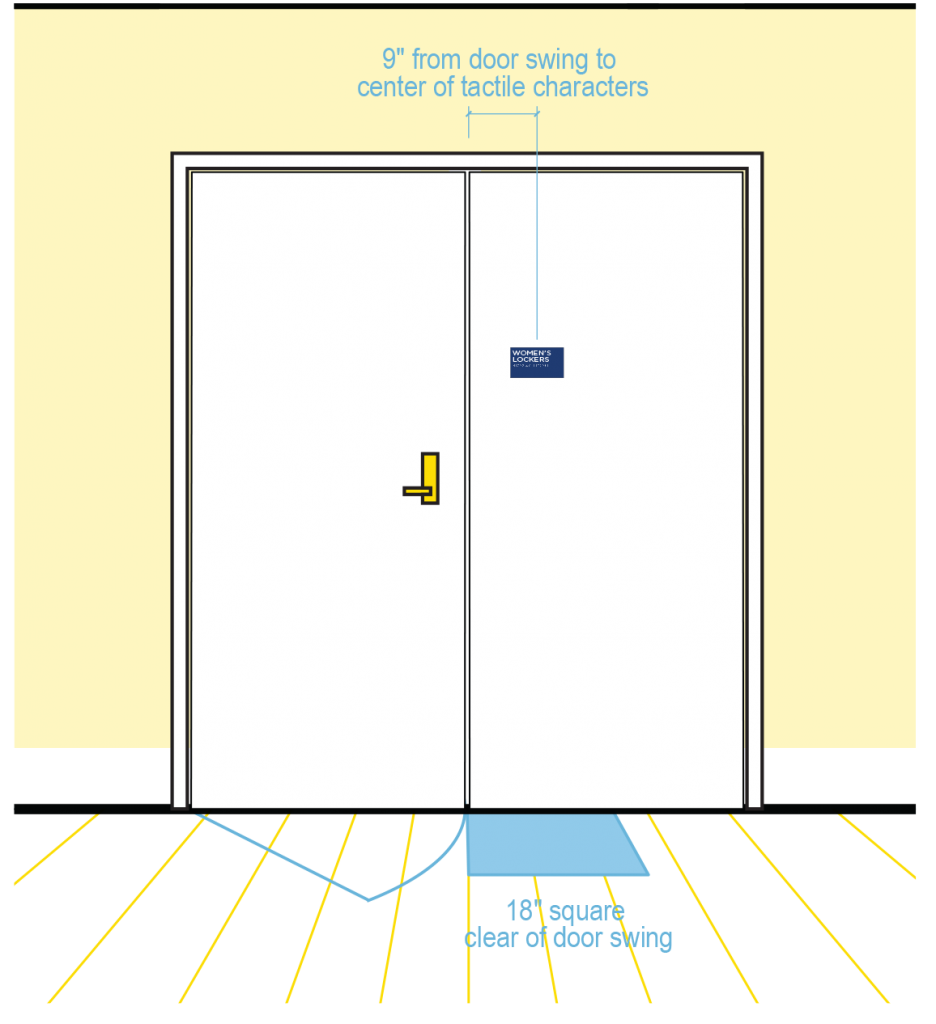

For double doors with one active leaf, mount the plaque on the inactive leaf.



ADA signs are wall-mounted next to the appropriate door, on the door handle side of the door, 3″ from the door jamb and 48″ to 60″* from the finished floor to lowest or highest line of sign text. These dimensions are guidelines only and the installer should consult the local building inspector or governing agency before installation. Park Place Sign Systems Inc is not responsible for charges or fines incurred from the incorrect use of these sketches. Please contact Park Place with any questions.

* Minimum sign mounting height – 48″ above the floor to the lowest line of sign text.
* Maximum sign mounting height – 60″ above the floor to highest line of sign text.
